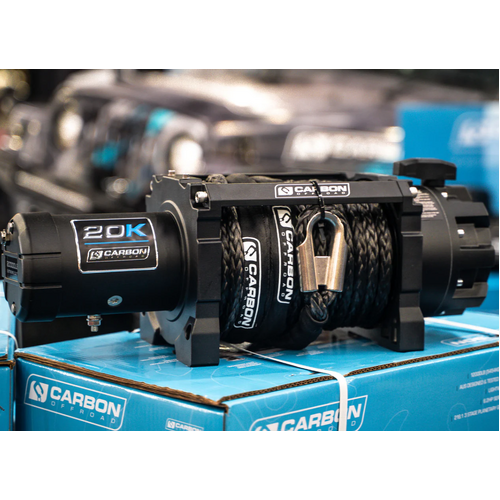

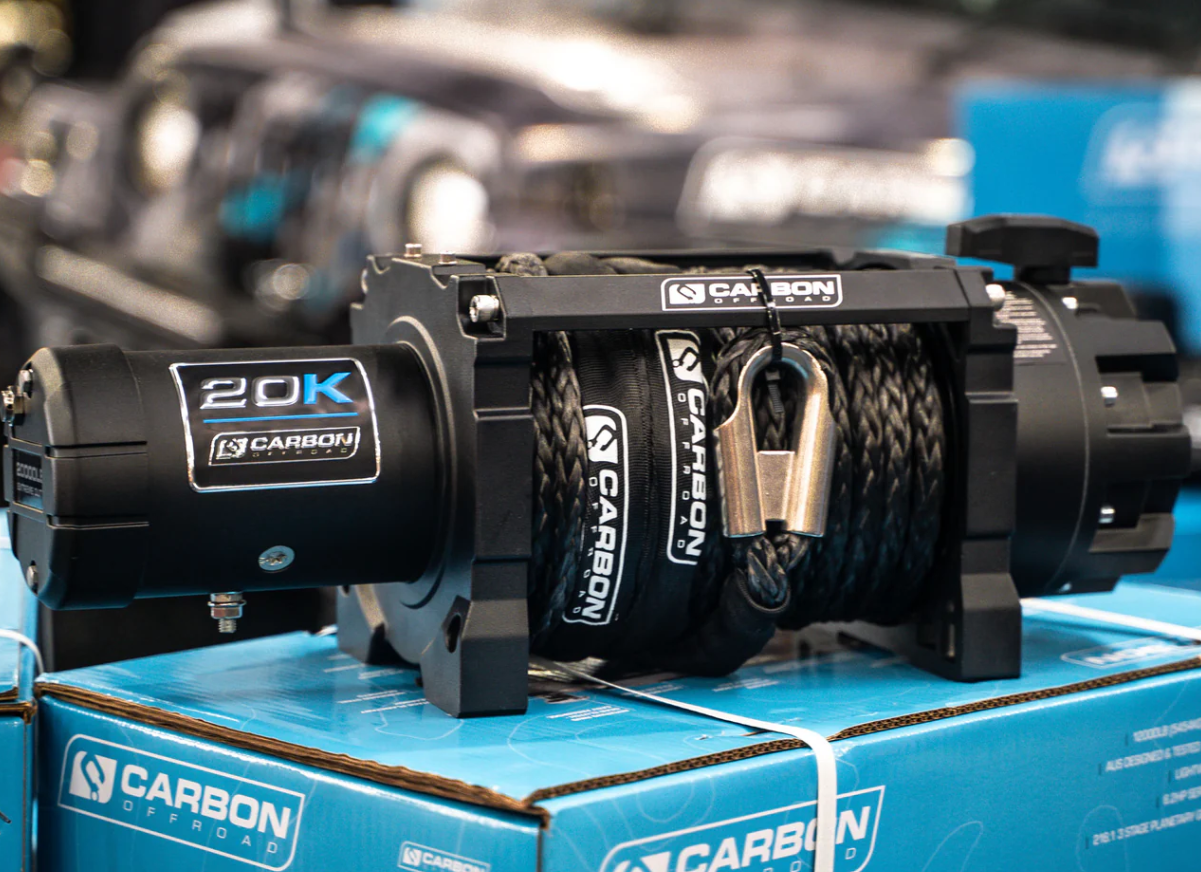

• Part number: CW-XD20
  • Rated line pull: 20000 lbs, (9072kg) single-line

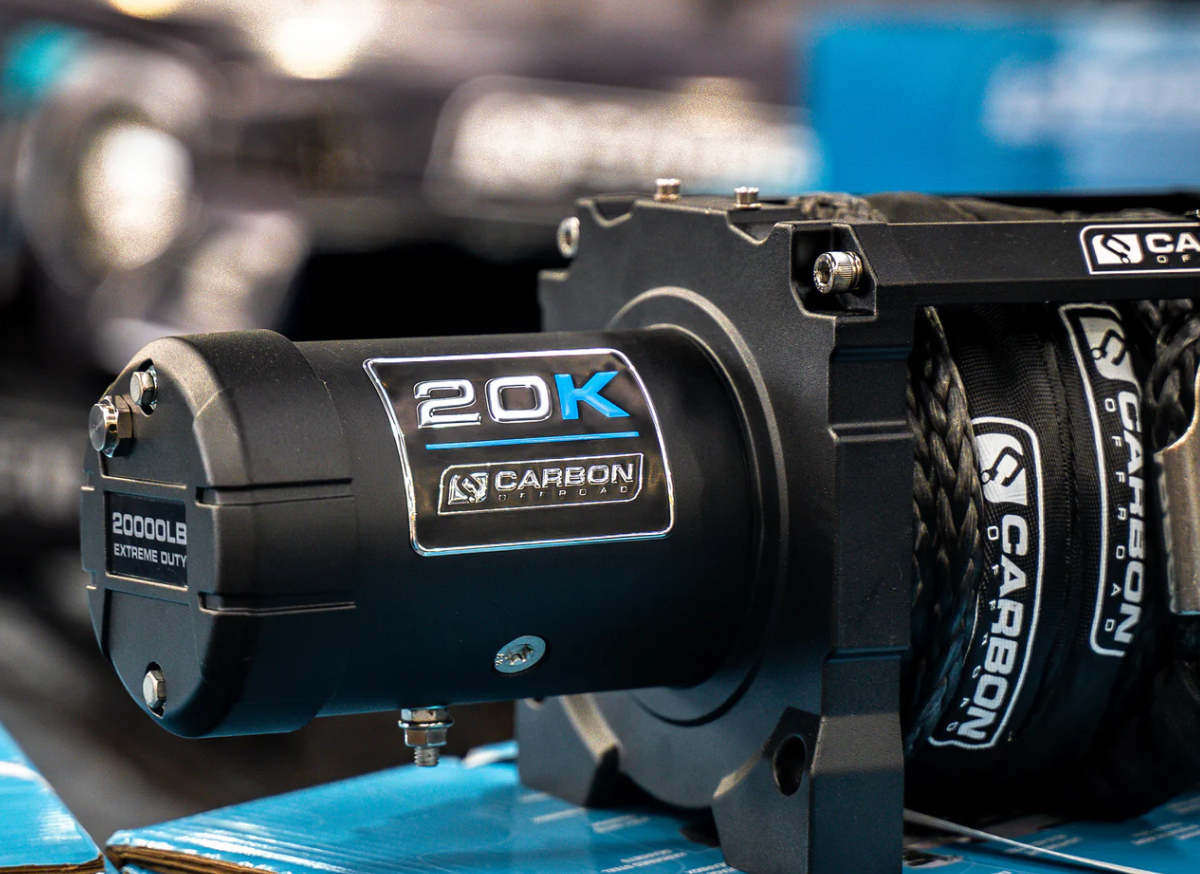

  • Motor: 12V DC 7 HP series wound motor (24V option available)
  • Remote Control: Wired with 3.6m lead
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 345:1
  • Rotating Ring Gear
  • Brake: Automatic brake in the motor bracket
  • Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty
  • Synthetic Rope: 25m x 13mm diameter
  • Drum Diameter/Length: 88mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 579 x 192 x 224mm
  • Packing Dimensions (L x W x H): 640 x 250 x 345mm
  • Winch weight with synthetic rope attached: 30kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 37kg



SKU SCT-41
Brand CARBON OFFROAD
Shipping Weight 37.0000kg
Shipping Width 0.250m
Shipping Height 0.345m
Shipping Length 0.640m
Shipping Cubic 0.055200000m3
